(스위스 현장)

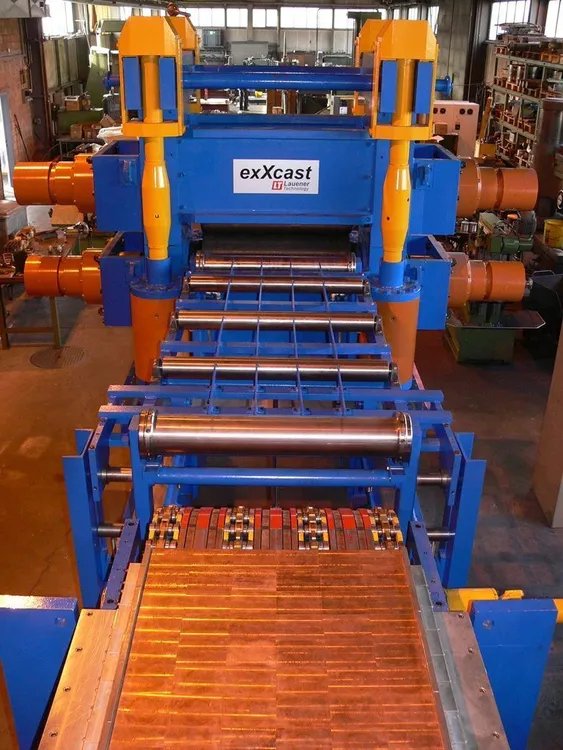

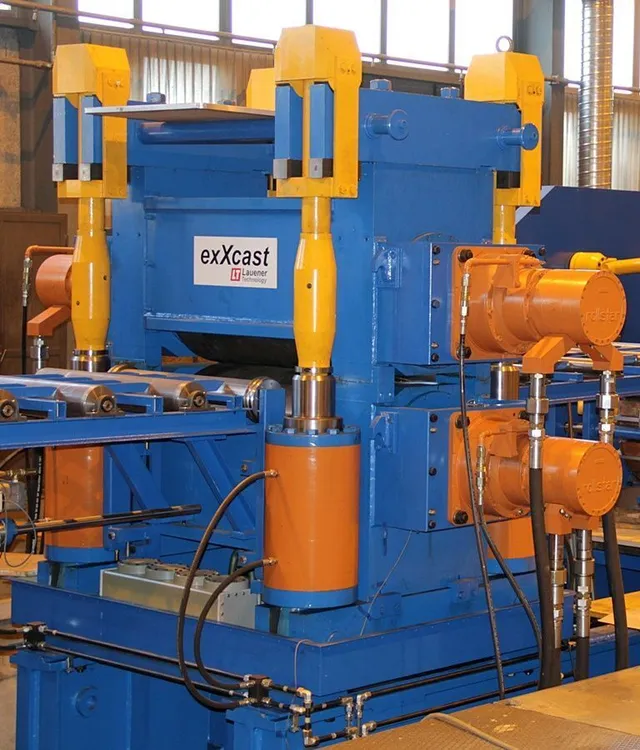

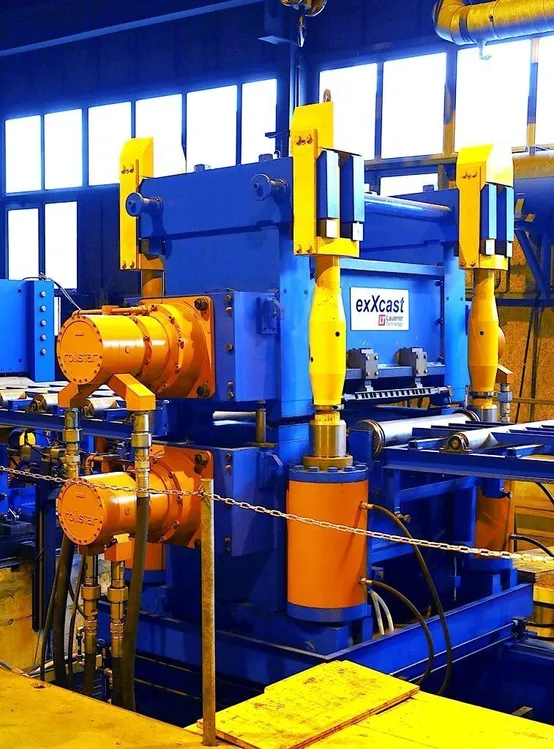

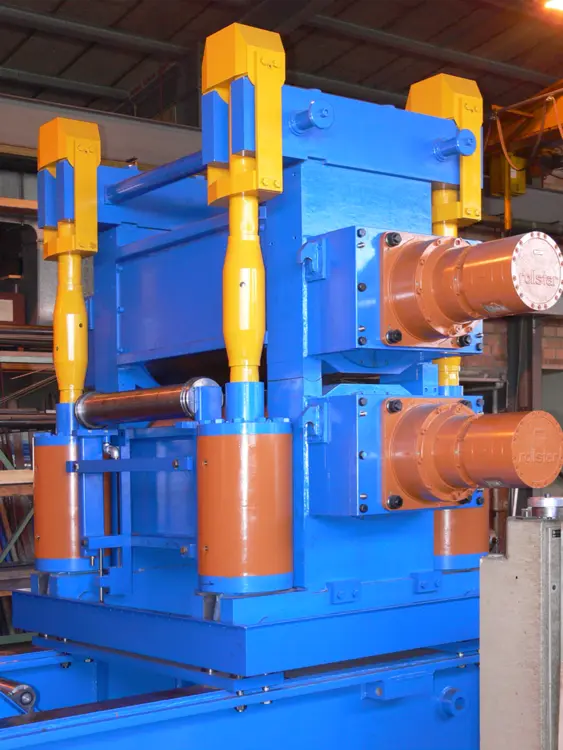

*알루미늄 냉간 압연기(Roughing Mill)
*Brand: LAUENER TECHNOLOGY (Suisse)
*년식: 2010
*Description
Manufacture
– Lauener Technology – Switzerland
– This mill was built new in 2010 to test Lauener’s new version of a Block Caster
– It has VERY few hours of operation
– Condition = excellent
Roll Size
– Diameter: 685mm / 27″
– Roll Face: 1000mm / 39.4″
Drive
– 4 hydraulic motors by ROLLSTAR (Switzerland)
– Model – M201
– Torque = (@ 145 bar), 4 x 1.64 kNm = Total 6.56 kNm
– Various pumps included
Rolling force
– 4 hydraulic cylinders
– 210 bar hydraulic pump included
– Rolling force = (@ 210 bar) 4 x 1.25 MN = Total 5.00 MN
– Higher rolling forces can be achieved with correspondingly higher oil pressure up to 300 bar
– However, the pump included in delivery is limited to 210 bar
Controls
– Includes control items such as frequency converters, etc.
Overview
– Mill design includes intelligent features for easy maintenance.
– The open structure allows for quick roll changes.
유니온/010-4035-3255
