(해외 현장)

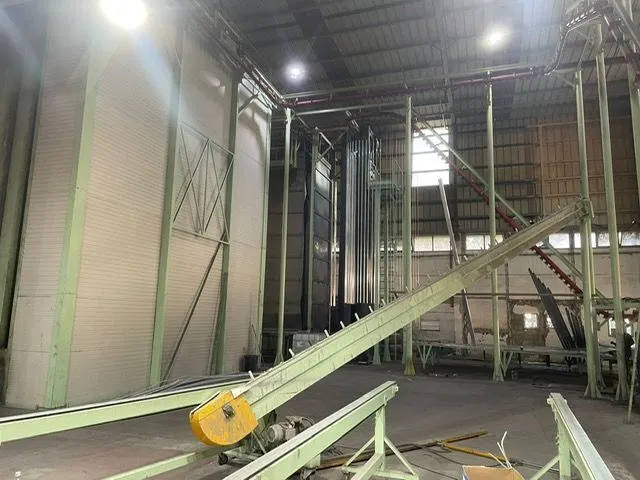

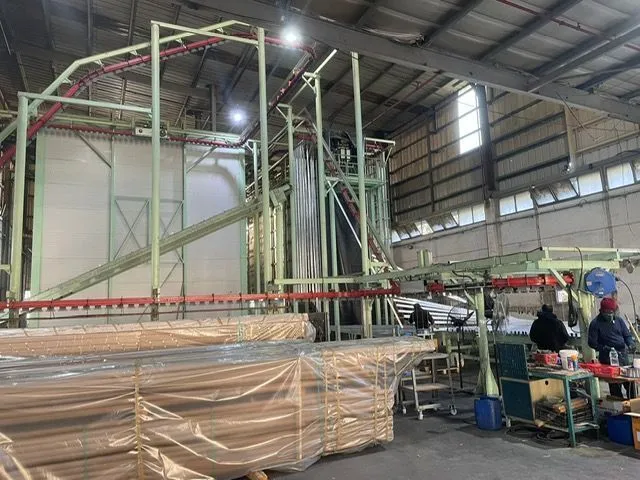

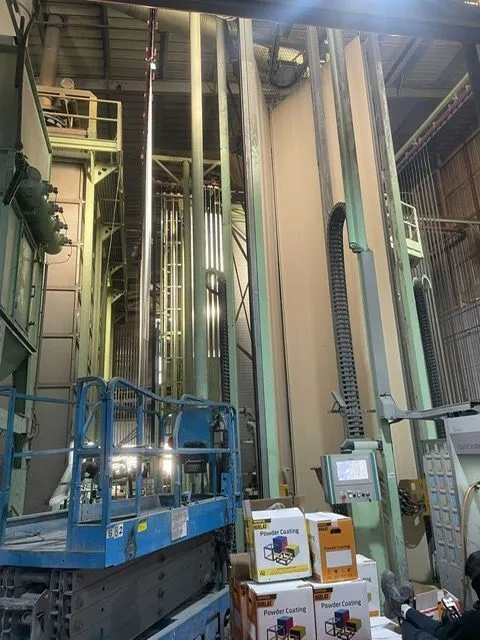

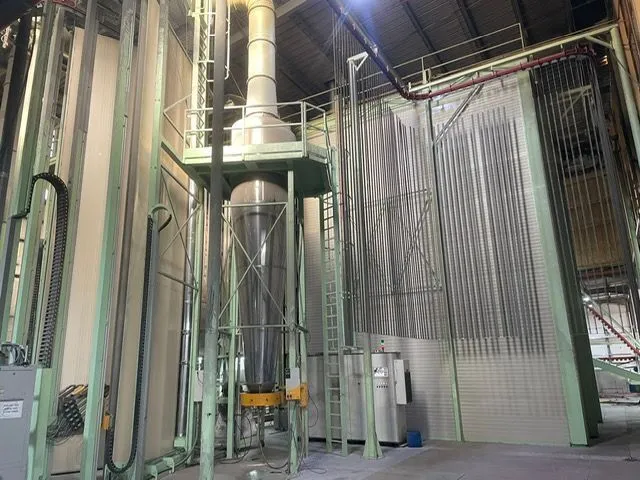

*알미늄 프로파일 도장라인 (수직형 분말 코팅 라인)
-알미늄용 수직 정전기 분말 프로파일 도장라인
-Maker: SAT Spa,GEMA, Siemens
-년식: 2018
-Model: EX-525
-현재 가동중 장비
-기본 사양:
Profile dimensions: 7000 x 100 x 200 mm – H x W x L
Weight of profiles: 30 kg/each max. Max. productivity: 676 pcs/h
Conveyor speed: 1.5 m/min. Hanging pitches: 66, 100,
133, 200 mm
Total electric power: 215 kW, 400 V, 3ph., 50 Hz Total
thermal power: 350.000 kcal/h
Compressed air – pressure required: 7 bar Water
flow rate required: 500 – 1000 L/h
Scope of supply: Pre-treatment tunnel Tunnel main tank
made from PP
Drying oven Curing oven
V- shaped painting booth Vacuum cleaning unit
Aerial conveyor
Control panel
연락주시면 전체 상세 사양서를 보내 드립니다
