(독일현장)- 가동중

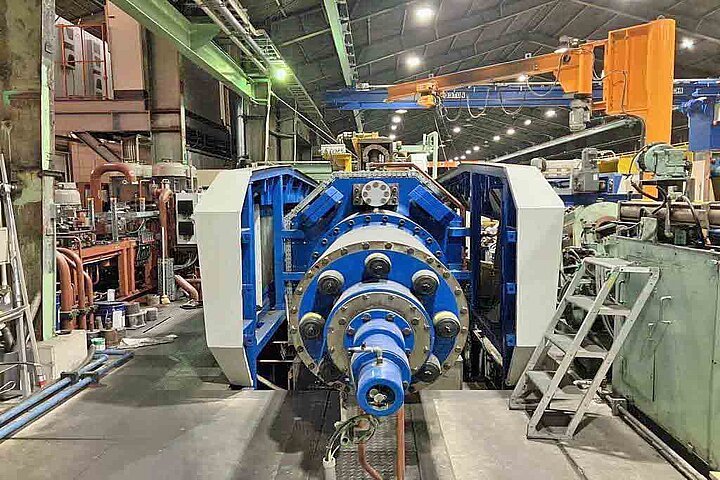

*알미늄 압출 프레스
-Brand: SMS
-Capacity: 1450 ton–6″
-년식: 2016년
-EXTRUSION PRESS – 1450 MT – BILLET DIA. 6-6.3” / 160 MM – LENGTH: 800 MM
-Specification:
Specification:
Production Products: Automobile Sensor Cover, Building Material, etc.
Press force: 1450 Ton Pressure: 310 bar (4,500 PSI)
Extruding Center: 1000 mm (39.3″) Extruding Height: 3400 mm (133.8″)
Hole of Billet Diameter: 160 mm (6.3″) Stroke: 960 mm (37.8″)
Press Speed: 23 mm/sec, Max. (0.9″/sec) Variable
Control System: Siemens S7

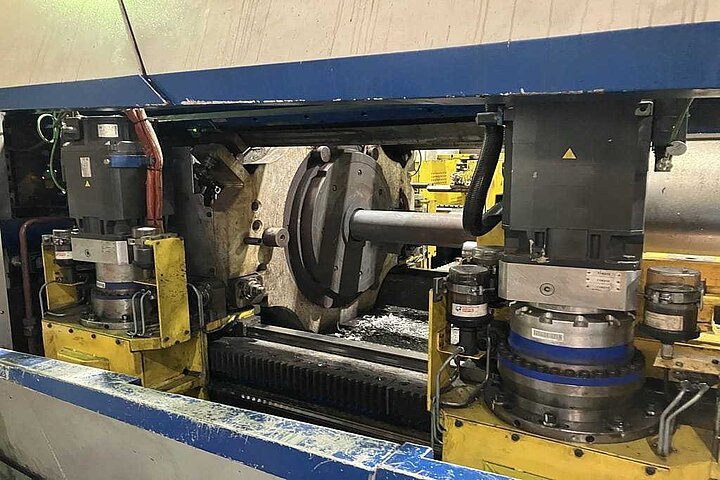

Billet Container:
Pressing Force: 140 Ton Pullback Force: 100 Ton
Intake Stroke: 1155mm (45.5″) Hole Range: 160mm (6.3″)
Container Length: 830mm (32.6″) Billet Length: 250 – 800mm (9.8″ – 31.5″)
In the case of billet has been split into two: 200 mm (7.8″)
Diameter of the Profile/Tool Package:
Pressure Plate Opening: 190 mm (7.5″) Dia. x 230 mm (9″) Wide
Tool Package: 330/277.55 mm (13″/10.9″) Dia. x 380 mm (15″) High

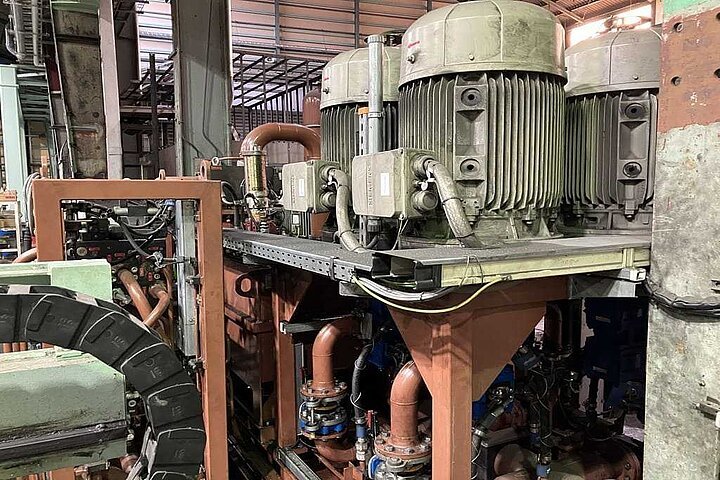

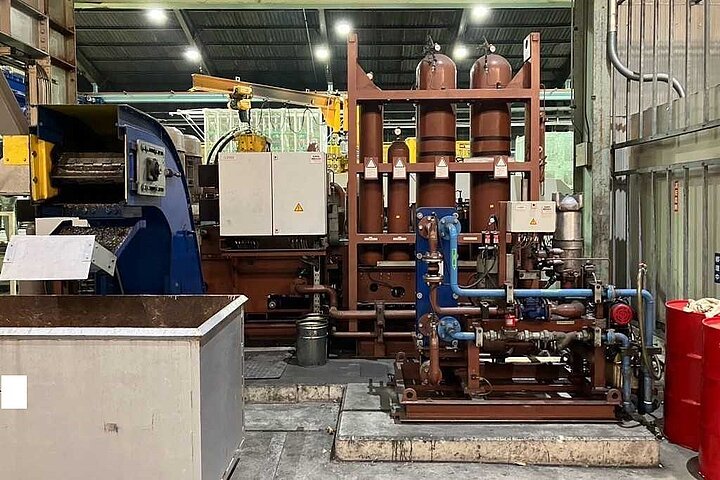

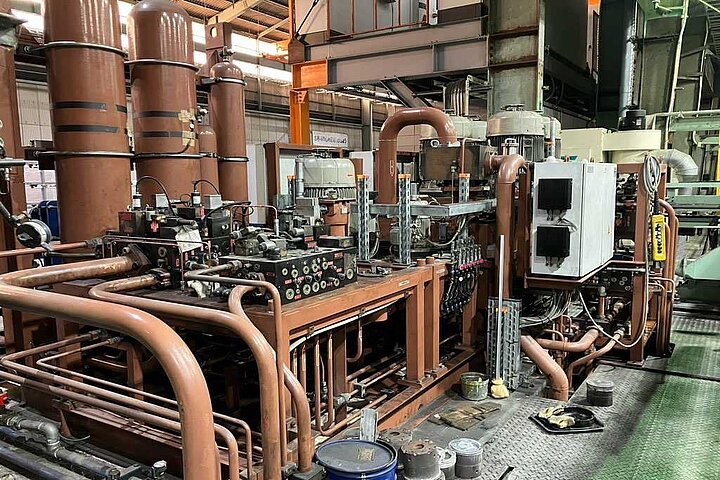

Hydraulic System:
Four High Pressure Oil Pumps (Double Internal Gear Pumps)
Operation Pressure: 310 bar, Max. (4,500 PSI)
Transport Amount Max.: 172 Liters Per Min.
Drive Force: 75KW Drive RPM: 400 – 2200 RPM Motor Type: V1
High Pressure Control Pump:
One High Pressure Pump
Operation Pressure: 320 bar, Max. (4,600 PSI)
Transport Amount, Max: 9.2 Liters Per Min.
Drive Force: 5.5 kW Drive RPM: 400 – 1500 RPM Motor Type: V1
Low Double Pressure Pump:
One Low Double Pressure Pump
Operation Pressure: 200bar, Max. (2,900 PSI)
Transport Amount, Max.: 90 Liters Per Min.
Drive Force: 37 kW Drive RPM: 400 – 1500 RPM Motor Type: V1
HybrEx Drive (Hybrid electric/hydraulic design)
Servo Electric Drive
Billet Container Drive: 15.7 kW x 2 Units
Operation Cross Head: 31.7 kW x 2 Units
Billet Loader: 14 kW
Electrics:
Operation Voltage: 440 V plus minus 5%, 3 Phase
Frequency: 60 HZ
The connected load of the motor switching device: 600 kVA
The connected load of container heater switching device: 35 kVA
Billet Container:
Total Electric: 15 kW x 2 Units
Hole of Billet Diameter: 160 mm (6″)
Specific Pressure of Press: 721 N/mm2 (105,000 PSI)
Length: 830 mm (32.6″) Weight: 2,800 kgs
Compressed Air: 6 bar
Billet heater is included in the scope.
+++++++++++++++
